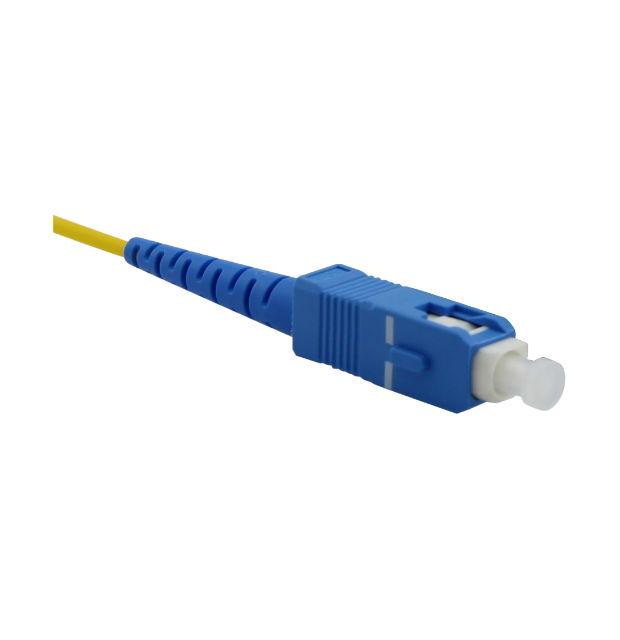

SC – FIBER OPTICAL PIGTAIL

OM1 / OM2 / OM3 / OM4 / OS2

FEATURES

  • ANSI, Bellcore, TIA/EIA 568C, IEC Strandards
  • Low Insertion Loss and High Retum Loss
  • Excellent Repeatability and Changeability
  • Simplex and Duplex Available
  • Ceramic Ferrules
  • Riser, Plenum & LSZH cable option
  • Optical performance 100% factory tested

APPLICATIONS

  • Telecommunication Networks
  • CATV Networks
  • Active Device Termination
  • Local Area Networks

SPECIFICATION

CHARACTERISTICSCONDITIONSVALUES
INSERTION LOSSAgainst Reference Connector>0.3dB
RETURN LOSSPC>45dB
UPC>55dB
DURABILITY1000times<0.2dB
IMPACT1.5mm drop: 8 times<0.2dB
OPERATING TEMPERATURE-20°C ~ +70°C
CABLE OUTER DIAMETER2.0mm

More Technical Parameters

ORDERING INFORMATION

MODELOFN PVC
LFPT-MX-A-NxxxMFO PT, SC/OMX OFN
LFPT-MX-D-NxxxMFO PT, LC/OMX OFN
LFPT-MX-J-NxxxMFO PT, FC/OMX OFN
LFPT-MX-G-NxxxMFO PT, ST/OMX OFN
LFPT-S2-B-NxxxMFO PT, SC/OS2 OFN
LFPT-S2-E-NxxxMFO PT, LC/OS2 OFN
LFPT-S2-K-NxxxMFO PT, FC/OS2 OFN
LFPT-S2-H-NxxxMFO PT, ST/OS2 OFN
MODELLSZH
LFPT-MX-A-xxxLMFO PT, SC/OMX LSZH
LFPT-MX-D-xxxLMFO PT, LC/OMX LSZH
LFPT-MX-J-xxxLMFO PT, FC/OMX LSZH
LFPT-MX-G-xxxLMFO PT, ST/OMX LSZH
LFPT-S2-B-LxxxMFO PT, SC/OS2 LSZH
LFPT-S2-E-LxxxMFO PT, LC/OS2 LSZH
LFPT-S2-K-LxxxMFO PT, FC/OS2 LSZH
LFPT-S2-H-LxxxMFO PT, ST/OS2 LSZH

Note:
X = 1, 2, 3, 4, 1=OM1, 2=OM2, 3=OM3, 4=OM4
xxx = 001, 002, 003…, 001 = 1m, 002 = 2m, 003 = 3m…
